हीट एक्सचेंजर ट्यूबें

Seamless Cold-Drawn Tubing ASTM A179 Low Carbon Steel Heat - Exchanger Tubes Description: Appilcations Boilers , Superheaters , Heat - Exchangers , Condensers Ubend Tubes according to Customer request Outside Diameter 5 - 420mm Wall Thickness 0.5 - 50mm Length Max12000mm Steel Grade and Chemical Compositions: C 0.06 - 0.18 Mn 0.27 - 0.63 P ≤ 0.035 S ≤ 0.035 Mechanical Properties: Tensile Strength min ksi ( Mpa ) 47 ( 325 ) ) Yield Point min ksi ( Mpa ) 26 ( 180 ) Elongation ≥

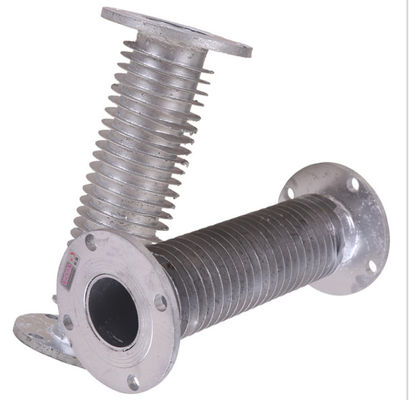

Aluminium Copper Extruded Embedded heat exchanger tube Products Description: Fin Tube Aluminium Copper Extruded Embedded Type Heat Exchanger for Radiators Evaporator BaseTube material: Stainless steel(SA213 304) copper muff Dimension: OD:16-140mm WT:2-10mm Length:1-25m Fin material: SA213-TP304H,Copper and so on Fin type: KL,L,LL,H ,spiral slot,low,Stud pipes-Visual, type seamless copper stainless steel fin tube Dimension: Thickness of fin :0.5-4.0mm Height of fin:5-30mm Fin

JIS G3455 STS370 Seamless Carbon Steel Tube Pipes for Boiler Applications: for High-Presure Service Size range: O.D.:5-420mm W.T.:0.5-50mm L: according to customer's requirement (Max12m) Chemical Composition Designation of Grade C Si Mn P S STS370 0.25 max. 0.10 to 0.35 0.30 to 1.10 0.035 max. 0.035 max. STS410 0.30 max. 0.10 to 0.35 0.30 to 1.40 0.035 max. 0.035 max. STS480 0.33 max. 0.10 to 0.35 0.30 to 1.50 0.035 max. 0.035 max. Other alloy elements than given in this

ASTM A179 SA179 Seamless Cold Drawn Low Carbon Steel Pipe For Heat-Exchanger And Condenser Introduction ASTM A179 SA179 is a specification for seamless cold drawn low carbon steel pipes used in heat-exchangers and condensers. These pipes are widely used in various industries due to their excellent thermal conductivity and corrosion resistance. This article will provide an overview of the material, specification, key features, chemical composition, mechanical properties, steel

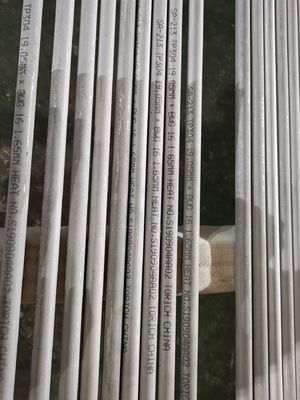

ASTM A213 T5 Steel Grade Heat Exchanger Tubes PRODUCT DESCRIPTION: Material: 304 304L 316 316L Etc OD: 6-127mm WT: 0.5-12mm Length: 6m Or As Customers' Request Application: For Boiler And Heat Exchange Delivery Condition: Pickled After Heat Treatment Production Method: Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished Finishing: A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing

Internally Ribbed Multi-Rifled Bolier Tubes Seamless Cold Drawn Boiler Tubes For Water Wall Power Plant High Pressure Internally Ribbed Multi-Rifled Bolier Tubes Seamless Cold Drawn Boiler Tubes For Power Generation And Energy Industry Quick detail: Material: 20G SA 192 A210 GrA1 15CrMo,12Cr1MoVG,T2,T12,T23,T91 etc Application:Boiler ,Drill tubes Standard:SA192 SA209 SA210 GrA1 SA213 EN10216,DIN1717 BS 3059 JIS3461, GB/T 20409 GB/T 5310 Size:O.D:22-82.6mm W.T.:4-16mm Chemical

ASTM A179 Carbon Steel Heat Exchanger Tube Standard ASTM A179 Matrial 10# 20# etc Carbon Steel Size OD: 12.7-177.8mm WT: 1-25.4mm Length: according to customer requirement Application For Boilers,Superheaters, Heat-Exchangers, High-pressure Boilers Production Tubes are manufactured by seamless process and both hot finished and cold finished are applicable Heat treatment Hot finished tubes need not be heat treated. Cold Finished tubes are heat treated after the final cold

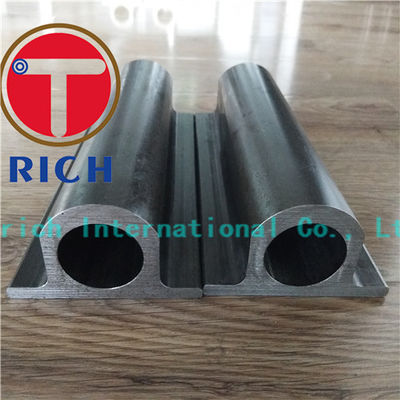

Cold Drawn Special shaped Alloy Structural shapes Hollow Hexagonals Fin Double Omega Steel Tubes profile Special shaped steel tubes Special shaped steel tubing Special shaped steel profile Alloy steel tubes Alloy steel tubing Alloy steel profile Structural shapes steel tubes Structural shapes steel tubing Structural shapes steel profile Hollow Hexagonals steel tubes Hollow Hexagonals steel tubing Hollow Hexagonals steel profile Fin steel tubes Fin steel tubing Fin steel

Torich ASTM A179 OD 420mm 24mm High Precision Seamless Steel Tube Cold Rolled Steel Pipe Brief introduction: Name A179 OD 420mm 24mm High Precision Seamless Steel Tube Cold Rolled Steel Pipe Standard ASTM A79 Production method Cold drawn Section shape Round OD 5-420mm WT 0.5-50mm Length Max12000mm Application Boilers, supreheaters, heat exchangers, condenser, U bend tubes according to customer request Mechanical properties Tensile strength:325Mpa Elongation: ≥35 % Hardness:
