हाइड्रोलिक सिलेंडर ट्यूब

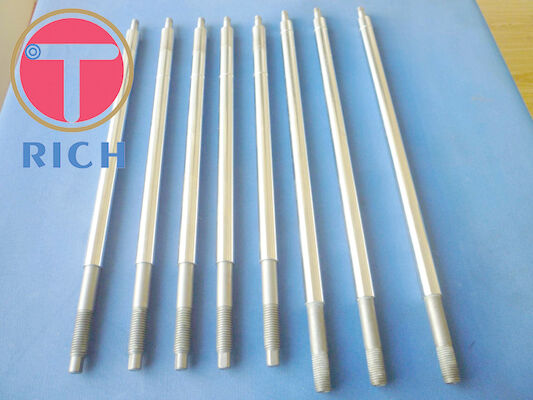

1020 ST52 Honed Hollow Piston Rods TORICH has NICE quality of 1020 Honed Hollow Piston Rods,ST52 Honed Hollow Piston Rods,Honed Hollow Piston Rods. keyword: Honed Hollow Piston Rods Type: Solid / Hollow Material: CK45, 20MnV6,42CrMo4, 40Cr D.: 40-400mm W.T: ≥5mm Alloy Or Not: Non-alloy Length: Up To 12000mm According To Customer's Requirement Place Of Origin: Zhejiang, China (Mainland) Surface Treatment : Chromed, Nickeled Heat Treatment: Annealed, QT Regular sizes we can

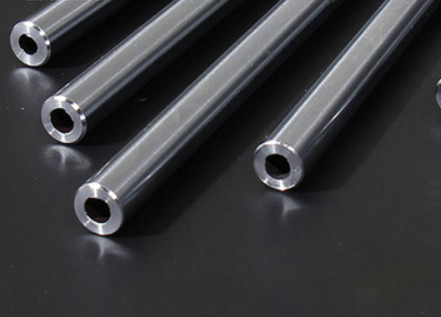

Seamless cold drawn/rolling steel tubes Steel tubes for precision applications. Technical delivery conditions. Size range: Cylinder ID: 20-400mm O.D.:6-500mm W.T.:1-30mm L:max12000mm Steel Grade and Chemical Compositions: Steel Grade C Si Mn P S Al Steel name Steel number max max max max max min E215 1.0212 0.10 0.05 0.70 0.03 0.025 0.025 E235 1.0308 0.17 0.35 1.20 0.03 0.025 - E355 1.0580 0.22 0.55 1.60 0.03 0.025 - Mechanical properties at room temperature Steel grade

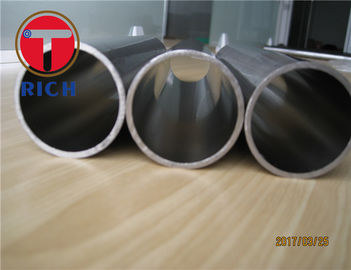

TORICH Diameter 46mm 38mm AISI 1020 1010 4130 34CrMo4 DIN St35.8 St52 Seamless Carbon Hydraulic Steel Pipe Cylinder Honed Tube Manufacture Method: Cold drawn, hot rolled+deep hole bored Certification: ISO9001, SGS, Material: Carbon steel,alloy steel, stainless steel Standard&Grade: DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc. Size Range: ID of 300mm max for cold

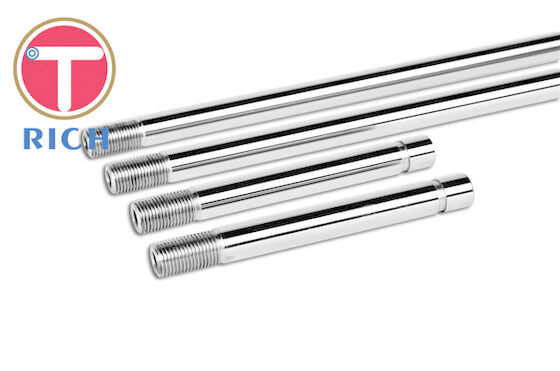

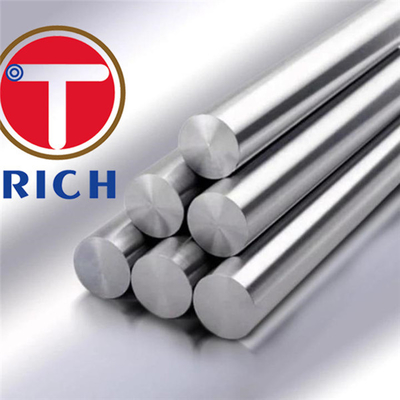

TORICH bright finished polished 4130 4140 42CrMo4 QT Hydraulic Ck45 C45E Hard chrome round bar/steel bar/piston rod Quick detail: OD: 6-300mm Length:1-9m Material:CK45/ST52/20MnV6/42CrMo/40Cr/Bearing steel/stainless steel/4140 4130 45# 1045 S45C GCr15 Chrome thickness :20-30 micron Hardness of the chrome layer:800HV(min) Heat treatment: QT Annealing Straight:0.2/1000mm Surface roughness:Ra 0.2 micron(max) Surface coating: Hard chromed Tolerance f7 Yield Strength:≥350Mpa

Seamless Cold Drawn Steel Tube For Hydraulic Cylinder And Pneumatic Cylinder Standard : GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002, ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009 Material: 20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355 Hydraulic and pneumatic cylnder tube standard/size/tolerance Working method Tube ID (mm) Length (m) Straightness (mm/m) Tolerance on ID Tolerance on WT ID Roughness (um) Cold Draw 40-400 ≤12m 0.2-0.5 　/ ±5% ≤1.6 Cold Rolled

300L~3000L Seamless Steel Tubes for Large Volume Gas Cylinder GB 28884 SPEC: Material:30CrMoE 42CrMoE 4130X 4142 Size Range:OD:80-1200mm WT:4-100mm General Length:4-12m Tolerance: According to the following tables or customers’ request. Category Size Tolerance Outside Diameter(D) - ±1%D Minimum Wall Thickness(Smin) D≤559 +25%Smin 0 D>559 +27.5%Smin 0 Wall Thickness(S) D≤559 +12.5%S -10%S D>559 ±12.5%S Mechanical Properties: Steel Tensile Strength Lower yield strength or

Cold Drawn Pipe Hydraulic Seamless Tube for Cylinder +SR H E335 Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes Steel tubes for precision applications. Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcyle shock absorber Auto shock absorber inner cylinder/Telescopic Cylinders Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm Production: Cold Drawn + Honing + Skiving + Roller Burnish Steel Grade and Chemical Compositions: Steel Grade C Si Mn

ASTM A519 DOM Tube For Hydraulic Cylinder And Pneumatic Cylinder Standard : GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002, ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009 Material: 20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355 Hydraulic and pneumatic cylnder tube standard/size/tolerance Working method Tube ID (mm) Length (m) Straightness (mm/m) Tolerance on ID Tolerance on WT ID Roughness (um) Cold Draw 40-400 ≤12m 0.2-0.5 　/ ±5% ≤1.6 Cold Rolled 40-150 ≤12m 0

EN10305-2 St52 Welded Cold Drawn Tube Honed Tube for Hydraulic Cylinder Applications: for Auto industry for machinery use Oil Cylinder Tube Motorcyle shock absorber Auto shock absorber innder cylinder Telescopic Cylinders Size range: ID.: 20-650mm W.T.:1-50mm L:max12000mm Steel Grade: E155, E195, E235, E275, E355. S45C Steel Grade and Chemical Compositions Steel Grade C Si Mn P S Steel Name Steel Number max max max max max E155 1.0033 0.11 0.35 0.70 0.025 0.025 E195 1.0034 0
