हाइड्रोलिक सिलेंडर ट्यूब

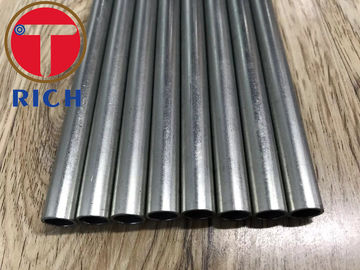

Hydraulic Cylinder using 304 Stainless Seamless Cold Drawn Steel Honed Tube Standard: EN10305-1 Steel Grade: E 235 E355 Etc Material: Carbon And Alloy Steel Grade I.D.: 40-400mm W.T.: ≥5mm Technique: Cold Draw Material:304 316 ect stainless steel. Place Of Origin: Zhejiang, China (Mainland) Surface Treatment: As Customer's Required Length: 3m Straightness:0.5/1000mm Tolerance of OD:0 -0.05 +0.05 Tolerance of ID:+0--0.03,+0.03--0.05,+0.05--0.10 Inside surface smooth finish:0.2

TORICH 304 321 316l 310s stainless steel round bar bright black Product Description: Stainless steel round bar is a cylindrical stainless steel product, which is widely used in automobile parts aviation aerospace hardware tools, chemical industry and other industries Origin ZHEJIANG China Brand Name TORICH Prodct Name 201/304/316/316L/310S stainless steel round bar HS code 72222000 Size 2.0.0mm-400mm 1/8”-15” Length 100MM-12000MM Tolerance H9-H11 or K9-K11 according to ISO

ASTM A519 JIS G3475 1045 BKS Cold Rolled Hydraulic Cylinder Honing Honed Tube​ JIS G 3473 is the production standard Torich follow to manufacture Hydraulic Cylinder Carbon Steel Tubes for Cylinder Barrels JIS G 3473 Carbon Steel Tubes for Cylinder Barrels Standard: JIS G 3473 Size: ID 5-420mm WT0.5-50mm L max 12000mm Grade: STC 370,STC 440, STC 510 A ,STC 510 B, STC 540 ,STC 590 A ,STC 590B Chemical composition and Mechanical properties of JIS G3473: Steel Grade C max Si max

Hot rolled seamless steel tubes for hydraulic pillar service Basic Info Material 1020 1035 1045 27SiMn 30MnNbRE Standard GB/T 17396 Production method Hot rolled Length 6-11.5m O.D. 100-900mm Wall thickness 6-30mm Chemical Composition max %: C Si Mn Nb RE Cr Ni Cu Mo P S 1020 0.18-0.23 0.30-0.60 0.035 0.035 1035 0.32-0.38 0.60-0.90 0.035 0.035 1045 0.37-0.44 0.60-0.90 0.035 0.035 27SiMn 0.24-0.32 1.10-1.40 1.10-1.40 0.30 0.30 0.20 0.15 0.035 0.035 30MnNbRE 0.27-0.36 0.20-0.60

Bright 316 304L 304 310 303 302 301 Hot Rolled Drawn Stainless Steel Round Bar Product Description: 300 series stainless steel round rods: 316 stainless steel round rods, 304L stainless steel round rods 304 stainless steel round rods, 310 stainless steel round rods, 303 stainless steel round rods, 302 stainless steel round rods, 301 stainless steel round rods Origin ZHEJIANG China Brand Name TORICH Prodct Name 201/304/316/316L/310S stainless steel round bar HS code 72222000

GB/T 17396 Hot Rolled Steel Hydraulic Tubing Seamless Steel Tubes For Hydraulic Pillar Service Material The material used in GB/T 17396 Hot Rolled Steel Hydraulic Tubing is high-quality carbon structural steel. Specification The specification for GB/T 17396 Hot Rolled Steel Hydraulic Tubing is as follows: Outer diameter: 4-76mm Wall thickness: 0.5-13mm Chemical Composition The chemical composition of GB/T 17396 Hot Rolled Steel Hydraulic Tubing is as follows: Element Chemical

JIS S10C Small Diameter Seamless Capillary Steel Tube Chemical Composition(%) Mechanical Property C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength ( σs ) ( σb ) 0.07~0.14 0.17~0.37 0.35~0.65 ≤0.04 ≤0.35 ≤0.15 ≤0.25 ≤0.25 / ≥205(25) (MPa) ≥ 410(42) (MPa) End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements Surface Oiled, Galvanized, Phosphate etc Treatment Technique Cold drawn Application 1. Automotive

TORICH Seamless Carbon Thick Walled Hydraulic Cylinder Honed Steel Tube Applications: for Auto industry for machinery use Oil Cylinder Tube Motorcyle shock absorber Auto shock absorber innder cylinder Telescopic Cylinders Size range: ID.: 40-1200mm W.T.:5-150mm L:max12000mm Steel Grade: 20#,45#,16Mn,25Mn Steel Grade and Chemical Compositions Steel Grade C Si Mn P S Steel Name Steel Number max max max max max E155 1.0033 0.11 0.35 0.70 0.025 0.025 E195 1.0034 0.15 0.35 0.70 0

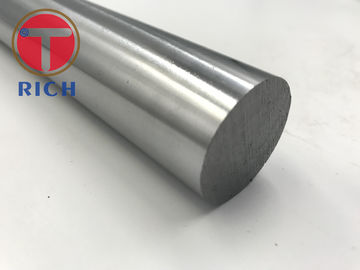

40CR Hard Chrome Plated Piston Rod Alloy Tube CK45 ST52 20MNV6 42CRMO4 Material: CK45;ST52;20MnV6;42CrMo4;40Cr CHEMICAL COMPOSITION(%) 　 Steel Grade C% Mn% Si% S% P% V% Ni% Cr% Mo% Cu% CK45 0.42-0.50 0.50-0.80 0.17-0.37 ≤0.035 ≤0.035 　/ ≤0.25 ≤0.25 /　 ≤0.25 ST52 ≤0.22 ≤1.6 ≤0.55 ≤0.04 ≤0.04 0.02-0.15 　/ /　 /　 　/ 20MnV6 0.17-0.24 1.30-1.70 0.10-0.50 ≤0.035 ≤0.035 0.10-0.20 ≤0.30 ≤0.30 /　 ≤0.30 42CrMo4 0.38-0.45 0.5-0.8 0.17-0.37 ≤0.035 ≤0.035 0.07-0.12 ≤0.03 0.90-1.20 0.15-0
