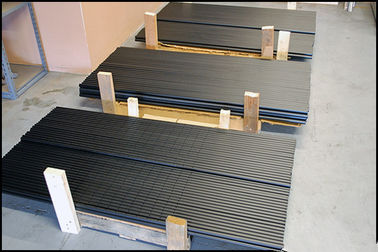

SA213 मिश्र धातु इस्पात पाइप T5 T9 T11 T12 T22, कार्बन स्टील हीट एक्सचेंजर ट्यूब
उत्पाद का विवरण
alloy steel seamless tube
,निर्बाध मिश्र धातु स्टील पाइप
मिश्र धातु स्टील ग्रेड T5 T9 T11 T12 T22
मिश्र धातु स्टील पाइप हीट एक्सचेंजर ट्यूब SA213
| स्टील ग्रेड | सी | एमएन | पी | एस | हाँ | सीआर | मो |
|
| अधिकतम | अधिकतम | अधिकतम | अधिकतम | अधिकतम | मिन |
|
| टी5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
| टी11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
| टी12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| टी21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| स्टील ग्रेड | तन्य शक्ति | उपज शक्ति | लम्बाई | कठोरता. अधिकतम |
|
| |
| min.ksi [Mpa] | min.ksi [Mpa] | % | ब्रिनेल/विकर्स | रॉकवेल |
|
|
|
| T5b | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| T9 | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| टी12 | 60[415] | 32[220] | 30 | 163HBW/170HV | 85HRB |
|
|
| T91 | 85[585] | 60[415] | 20 | 250HBW/265HV | 25HRC |
|
|
| T92 | 90[620] | 64[440] | 20 | 250HBW/265HV | 25HRC |
|
|
-
डोम उत्पादन के साथ ऑटो पार्ट्स एएसटीएम A513 कोल्ड रोलिंग वेल्डेड स्टील ट्यूब
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
हाइड्रोलिक सिस्टम के लिए 25 मिमी डायमीटर ब्राइट एनीलिंग सीमलेस स्टील ट्यूब
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
हाइड्रोलिक सिस्टम के लिए प्रेसिजन सीमलेस ब्लैक फॉस्फेटिंग स्टील ट्यूब
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
परिशुद्धता निर्बाध जस्ती स्टील ट्यूब DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
