Place of Origin:
Zhejiang/China
ब्रांड नाम:
TORICH
प्रमाणन:
ISO9001 ISO 14001 TS16949
Model Number:

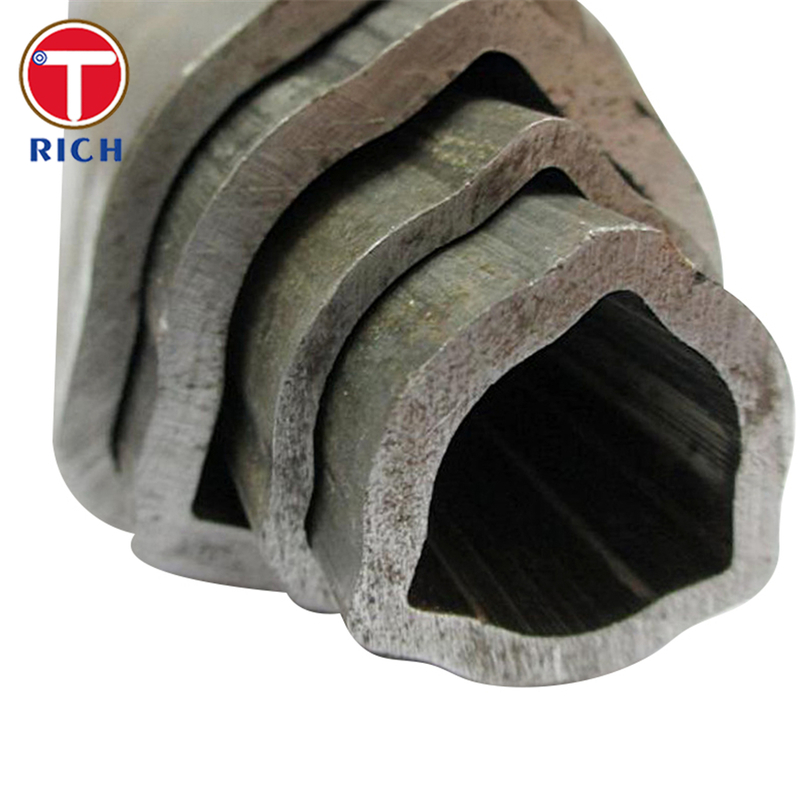

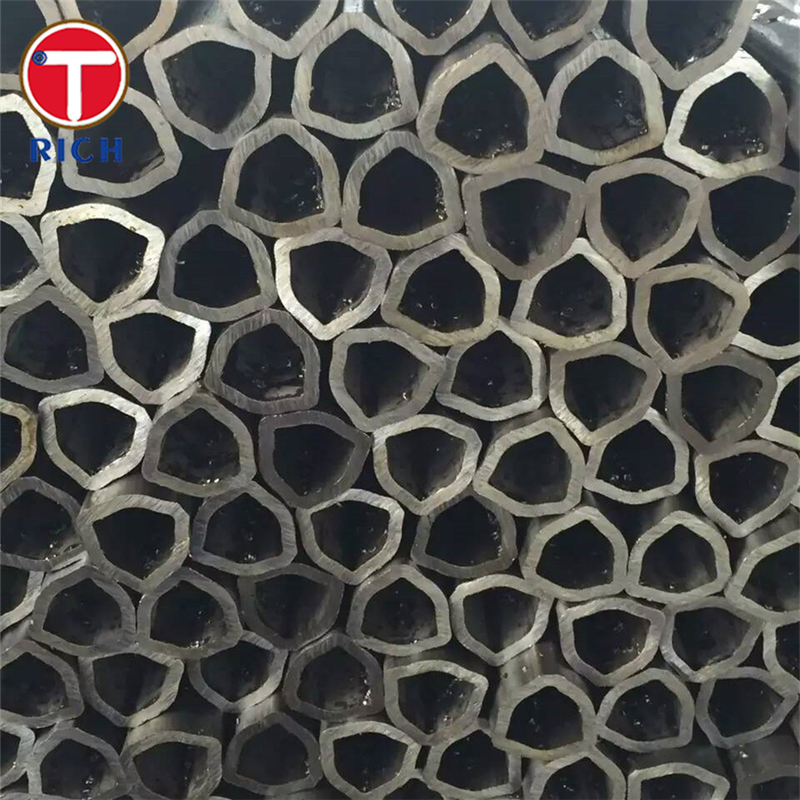

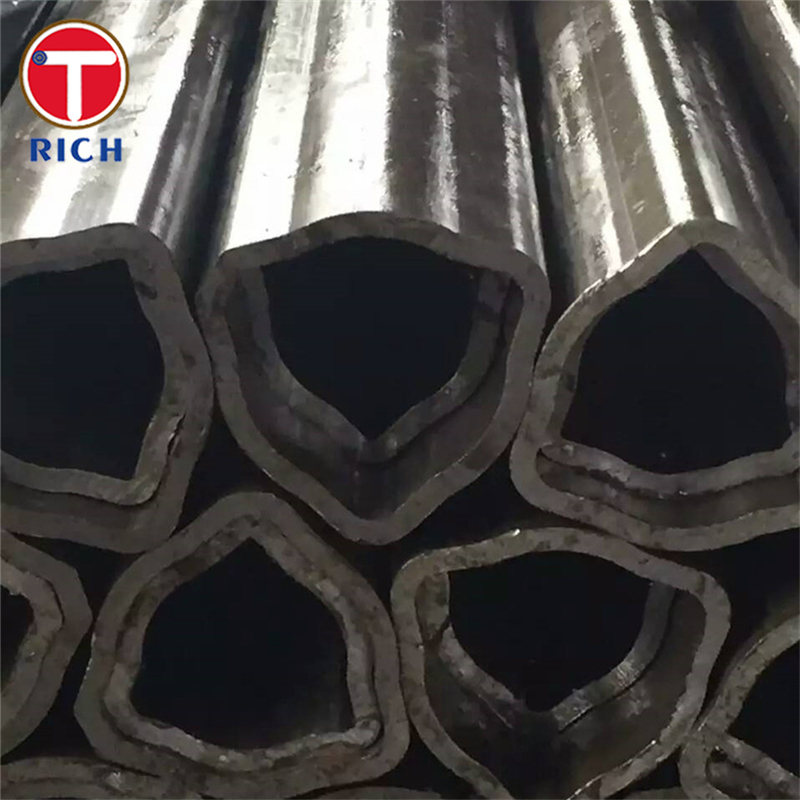

Triangle Pipe ST52
विडियो
| Attribute | Value |
|---|---|
| Application | Agricultural Shafts |
| Outer diameter (round) | 30 - 426 mm |
| Thickness | 2 - 100 mm |
| Certification | API, CE, ISO, ISO9001-2008, ISO9001 |
| Technique | Cold Drawn, Hot Rolled, Cold Rolled, ERW, Hot Rolled/Cold Drawn |
| Section shape | Round, Rectangular |
| Grade group | ST35-ST52 |
| Length | 6M or as requirement, As customer's require, 8m, 5.8m, 2.5-8m |
| Grade | C (max %) | Si (max %) | Mn (max %) | P (max %) | S (max %) | Standard |
|---|---|---|---|---|---|---|
| ST52 | 0.22 | 0.50 | 1.60 | 0.035 | 0.035 | EN 10210/10219 |
| S355JR | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | EN 10025-2 |
| Q345B | 0.20 | 0.50 | 1.70 | 0.045 | 0.045 | GB/T 1591 |
| A572 Grade 50 | 0.23 | 0.40 | 1.35 | 0.035 | 0.040 | ASTM A572/A572M |
| A106 Grade B | 0.29 | 0.45 | 1.06 | 0.025 | 0.015 | ASTM A106/A106M |
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Standard |
|---|---|---|---|---|
| ST52 | ≥355 | 510-680 | ≥22 | EN 10210/10219 |
| S355JR | ≥355 | 470-630 | ≥20 | EN 10025-2 |
| Q345B | ≥345 | 470-630 | ≥20 | GB/T 1591 |
| A572 Grade 50 | ≥345 | 450-620 | ≥18 | ASTM A572/A572M |
| A106 Grade B | ≥240 | 415-550 | ≥30 | ASTM A106/A106M |
विडियो
विडियो
विडियो
विडियो
विडियो
विडियो
अपनी पूछताछ सीधे हमें भेजें
