मोटर वाहन स्टील ट्यूब

EN10216-1 DIN17175 St35 St45 St52 E215 E235 E355 Carbon Steel and Alloy Steel Shock Absorber Cylinder Use Product Name Seamless carbon steel pipe tube Material Carbon Steel and Alloy Steel Surface Oiled, Polished, Brightness, Metallic color Standard ASTM A106 A53 A192 A179 A210 A519 DIN17175 1629 2391 EN10216-1 10216-2 10305-1 and so on Grade St35,St45,St52,E215,E235,E355,sch10,sch20,A106,A179,A192,A210,T11,T22,T12,AISI4130,SAE1010,SAE1020.etc Craft Cold rolled and Cold drawn

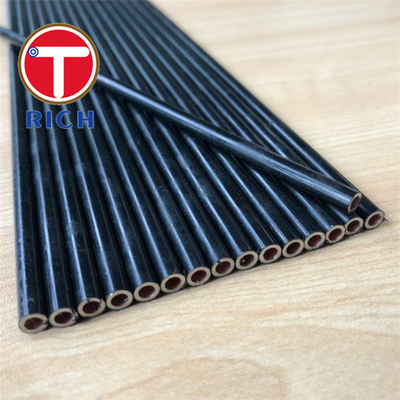

10*0.7 PVF Bundy Tube Automotive Steel Tubes 1. Standard ASTM A254 Copper-brazed steel tubing SAE J526 Welded low-carbon tubing SAE J527 Brazed Double Wall Low-Carbon Steel Tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems 2. Steel Grade BHG1, BHG2, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06 3. Heat Treatment BK or NBK 4. Specification O D/ mm 4 4.2 4.76 6 6.35 7.8 8 9.52 W T 0.5-1.0mm (0.5-0.7mm common WT) Tolerance ±0.05mm Length

Precision Steel Tube EN10305-1 Cutting to Specified Length with Hydraulic Cylinder Tubing Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes For Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts Size range: O.D.:6-380mm W.T.:1-35mm L:max12000mm Steel Grade and Chemical Compositions: Steel Grade C Si Mn P S Al Steel Name Steel Number max max max max max min E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025 E235 1.0308 0.17 0.35 1.20 0.025 0.025 - E355 1.0580

Large Diameter and Thin Wall Steel Tubes for Heavy Truck Exhaust System from TORICH ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Grade: 1008,1010, 1020, 1026 Production: ERW + DOM Steel Grade and Chemical Compositions: Steel Grade C Mn P S Si Cr Mo max max max max min 1008 0.10 0.5 0.035 0.035 1010 0.08-0.13 0.30-0.60 0.035 0.035 1018 0.14-0.20 0.30-0.60 0.035 0.035 1020 0.17-0.23 0.30-0.60 0.035

DOM Cold Drawn Welded Tube for Automotive Parts with EN10305-2 E235 E355 EN10305-2 Cold Drawn Welded Precision Steel Tubes DOM tubing E155,E195,E235,E275,E355 +C +LC +SR +A +N DOM is a process that is applied to tubing after it is initially constructed.It is refferred to as Seamless ,It can be said that do seamless process method on ERW tubes,So the tubes will have a high strength ,high quality .Material form E155 E195 E235 E275 E355 1020 1026 and so on .DOM tubing is

Products Description TORICH GOST9567 Cold Drawn Precision Steel Tube Seamless Mechanical Steel Tubing Standard GOST9567 Precision steel tubes Material 10, 20, 35, 45, 40X, 30ХГСА Size WT: 1-15mm; OD: 6-168mm; Length: max 12000mm Manufacturer Pipes shall be made by the Cold Drawn seamless process. Applications For Automobile, Machinery Engineering, Autoparts etc. Test Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric

EN10305-1 1008 1020 Cold Drawn Seamless Steel Tubes for Automotive Application: for Auto industry for machinery use Oil Cylinder Tube Motorcyle shock absorber Auto shock absorber innder cylinder Telescopic Cylinders Applications: for Auto Industry/for Machinery Use/Oil Cylinder Tube/Motorcyle Shock Absorber Auto shock absorber innder cylinder/Telescopic Cylinders Size range: O.D.:6-420mm W.T.:1-50mm L:max12000mm Supplying Steel Grade: E155, E195, E235 E275, E355 Delivery

Products Description: GB/T 8162 1020 Cold Drawn Steel Pipe Thin Wall Seamless Steel Tube Steel Grade/Steel Material/Steel Number: 1010 1020 1045 etc Size Range: OD: 4.0-1200mm WT:0.5-200mm Length: max 12000mm Our regularproduction size 50x0.5mm, 60x1mm etc Characteristic: Good Surface Quality Good OD and ID tolerance controlled to Technical Standard Stable quality 100% Eddy Current Test TORICH QUALITY ASSURANCE Production Processs: Seamless Cold Drawn to very thin wall tube +

BS6323-6 CEW 1020 St37.2 Cold Drawn Welded Precision Shock Absorber and Strut Tube Quick Detail: Product name BS6323-6 CEW 1020 St37.2 Cold Drawn Welded Precision Shock Absorber and Strut Tube Steel Grade CEW, 10#, 20#, St37, St52, St35.4, St52.4, ST35, ST37.4, E155, E195, E235, E275, E355 Size Range OD range:15-200mm WT range: 0.8-16mm Tolerance OD: (+/-0.06mm) WT: (+/-0.03mm) Regular specifications 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5 Straightness ≤0.5mm/1m
